FAX: 773 792-2129

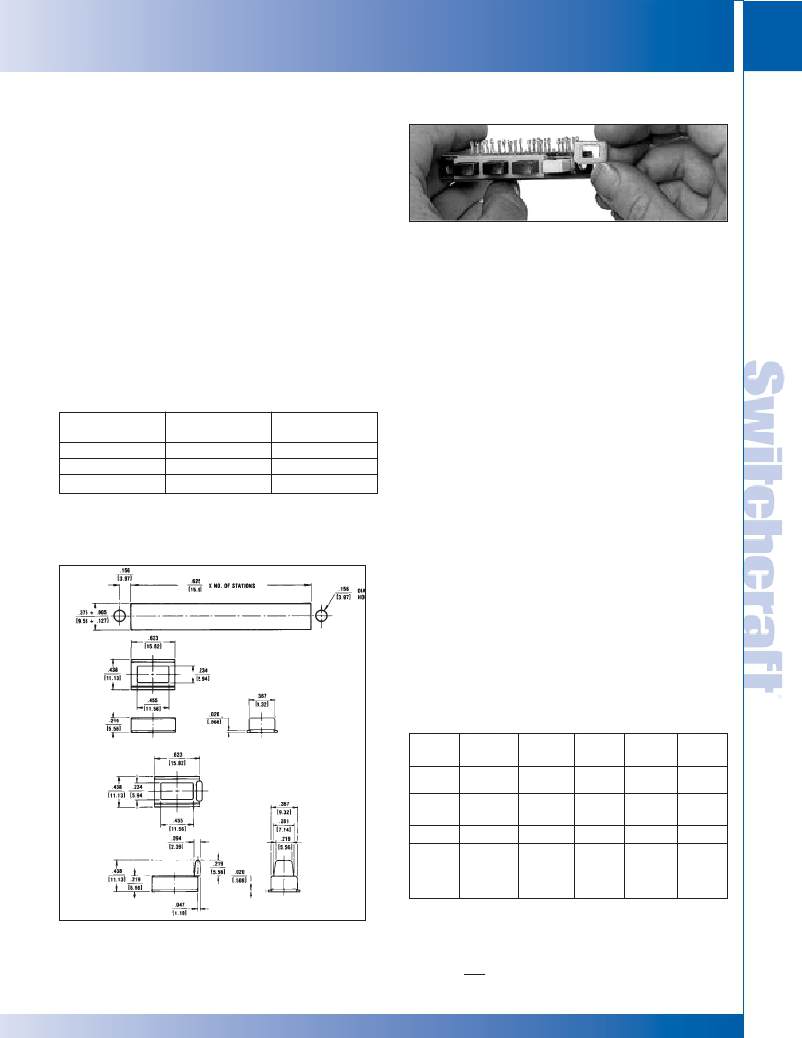

SWITCHES
DW SWITCH – ACCESSORIES
311
* Please visit the product pages on our website for the most up-to-date product information
MULTIPLE-STATION SWITCHES (continued)
DW MULTI-SWITCH ACCESSORIES
ESCUTCHEON MODULES, SERIES DW100 AND DW200
Modules are available in colors to match or contrast with
Series 65000 pushbutton colors. Modules are simply slipped
over the pushbuttons before the switch is mounted on the
panel. Flanges on modules overlap the panel cutout and hold
modules securely in place while adding only 0.02" (.051 mm)
behind panel space.
One module is required for each station. Installation of the
Series DW200 Modules (with barrier) is equally simple. First,
place one Series DW100 Module over the pushbutton
actuator on one end of the row. On the adjacent actuator,
place a Series DW200 Module. Position this module so that
the barrier overlaps the edge of the Series DW100 Module.
Install the remaining Series DW200 modules in the same
manner, with the barriers overlapping. The completed
escutcheon will have barriers between adjacent pushbutton
actuators, but no barriers at the ends of the rows.
SPECIAL SWITCHING FORMS
In addition to 2-C and 4-C switching, other circuit forms can
be supplied on special order. They are: 1-A, 2-A, 3-A, 4-A,
1-B, 2-B, 3-B, 4-B, 1-C, 3-C, 1-D, 2-D, 3-D, and 4-D.
BARRIERS (SERIES 67000 ONLY)
As an option, (field installable) barriers can be specified and
installed. Sturdy wire barriers fit between pushbuttons and
prevent accidental simultaneous actuation of adjacent
push-buttons. When a pushbutton is depressed, the fingertip
is guided away from adjacent pushbuttons, and all pressure is
applied to the correct pushbutton.
Switchcraft Part Number ? P2359 Barriers (package of 25)
Series DW-100
Series DW-200
SOLENOID RELEASE
(without barrier)
? DW101
DW102
DW05
(with barrier)
? DW201
DW202
DW205
Color*
Red
Black
White
Solenoids provide electromechanical assistance in releasing locked
switch stations in switches with up to 12 stations. Release can be
effected from a local or remote position. Solenoids are available for use
with switches having inter-lock, all-lock, or push-lock/push-release
* Other colors available on special order.
? Special order only; Contact Switchcraft for price and delivery information.
PANEL OPENING
DW100
mechanical functions. All solenoids are “pull-type”. When ordered
separately, solenoids are supplied with all mounting hardware. Brass
terminals accept “push-on” type clips (ARK-LES #3500M20C), or
wiring can be soldered directly to the lugs.
SPECIFICATIONS
Frame, Latch Bar, and Switch Housing: Steel, plated.
Mounting Studs (Series 66000 and 67000):
Same as frame above.
Pushbutton Actuators (Series 65000): Molded thermoplastic.
Pushbuttons (Series 66000 and 67000):
Molded thermoplastic.
Terminals: Copper alloy, silver-plated.
Contactors: Copper alloy, plated.
Terminal Board: Rigid plastic.
Lamp Socket (Series 67000): Copper alloy, plated.
Part
Switch
Coil Res.
Duty
Number
? DW1
Function
Interlock
Mounting*
Left
Voltage
115 AC,
(Ohms)
361
Cycle
20%
DW200
60 Hz
? DW3
All-Lock
Right
115 AC,
130
10%
60 Hz
? DW4
? DW7
Interlock
All-Lock or
Push-
Left
Right
24 DC
24 DC
14.2
8.96
20%
10%
Lock/Push-
Release
* Direction indicates side of switch frame solenoid is mounted on
(solenoid terminals up).
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
